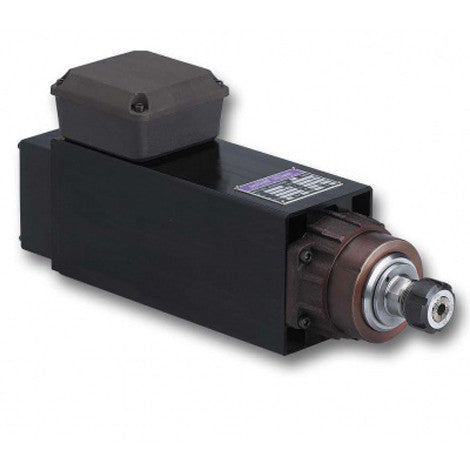

COLOMBO RS 73/2 3HP MTC SPINDLE MOTOR - IN STOCK

Product Description

Giordano Colombo RS 73/2 FP1 SB CPE 25 manual tool change (MTC) Electric fan-cooled. Electric spindle motor, 220V/380V.

Colombo RS Series Spindle Motors – Electric Fan Cooled

Giordano Colombo spindles are designed for applications on machines working wood, plastic, aluminum, light alloy, glass and marble. The frame is made from extruded aluminum bar or from heat treated special alloy aluminum ingot. The bearings are a precision angular contact type, with steel or ceramic balls and life lubrication with special grease for high speeds.

Colombo RS 73 Series Mechanical Specifications:

RS 73/2 FP1 SB CPE 25 DX
3 HP, 2.2 kW, 220/380 V, 8.6/5 A, 18000/24000 RPM, 300/400 Hz, 2 Pole,
Dwg #73E621/IN
FEATURES
-Cooling by Electric Fan (45 CFM)
-Dual Angular Contact Bearings at Cutting Tool End
-Collet Chuck - ER25
-Includes ER25M collet nut balanced for 24k RPM (M30x1) RH
-Weight 20 lbs (9 kg)
-Requires Wch-Nut-25M and Wch-Shft-24mm wrenches for tool change

•  IN STOCK
